XL5+ Metal Bender Option 2: Embossing & End Forging Kit

Using the XL5+ Metal Bender with this option allows one to put distinct V's or nicks into metal and gradual curved notches in metal.

Kit also includes forging patterns to create attractive "fish tailed ends".

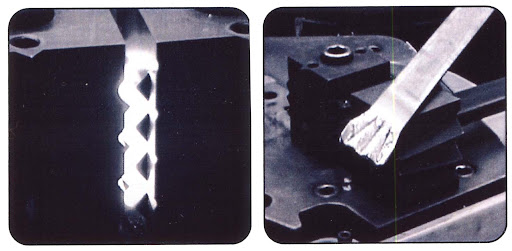

The Embossing/End Forging blocks each have 2 different embossing patterns for creating decorative effects in bars and tubes. This operation is performed cold (no need to preheat the metal). The pointed faces put distinct V's or nicks into the edges of flat bar, on the faces of square tube, or on corners of square bar. The curved faces put more gradual curved notches in the edge of flat strip and the face of tubes to give a hammered effect.

The Embossing/End Forging blocks each have 2 different end forging patterns for creating a decorative crimped effect on the hammered ends of bars. Create attractive "fish tailed ends" for use in the center of scrolls or as a decorative feature on the end of flat strip, square bar, and round rod. There is a small pattern for metal up to 3/4" wide and a large pattern for metal from 1" to 1 3/8" wide. (preheating of metal required).






SPECIFICATIONS: (maximum working capacity)

Embossing (pointed profile to create V's "notches" in metal:	1" x 1" (solid square bar ON EDGE). 1" x 1" x 16 gauge (hollow square tubing ON EDGE). 2 3/4" x 3/16" thickness (flat strip metal LAYING FLAT).
Embossing (curved profile to create gradual notches:	1" x 1" x 16 gauge (hollow square tubing). 2 3/4" x 1/8" thickness (flat strip metal LAYING DOWN).
End Forging (small pattern):	1" wide (flat strip metal before it is heated and tapered). 1/2" (solid square bar before it is heated and tapered). 1/2" (solid round rod before it is heated and tapered). 1/2" (solid square bar ON EDGE before it is heated and tapered).
End Forging (large pattern):	1 1/2" wide (flat strip metal before it is heated and tapered) 5/8" (solid square bar before it is heated and tapered). 5/8" (solid round rod before it is heated and tapered). 5/8" (solid square bar ON EDGE before it is heated and tapered).
